WATER GENIUS

Classical and thin, powerful discharge floor-standing air-conditioner

4M Wate Head, easy discharge.

extremely thin and easy match.

1. Cooling Condensed Water Intake

2. Outlet Pipe Connector

3. AC Outlet

4. Overfall Gap

5. Backpalne Slot

Effective Mini-Motor

Developed specifically High-head motor for the Water Genius series to achieve very high lift with 4M.

Flat Exterior Design

Embedded outlet design to avoid breaking when installed or water streamed onto the body caused failure.

Check valve design

prevents cooling condensed water setback from inside of drainage pipe, no limit to even high or low water discharging.

Insulated housing design

no dew or water coherence on case surface.

Independent Power Switch design

easy installation and maintenance.

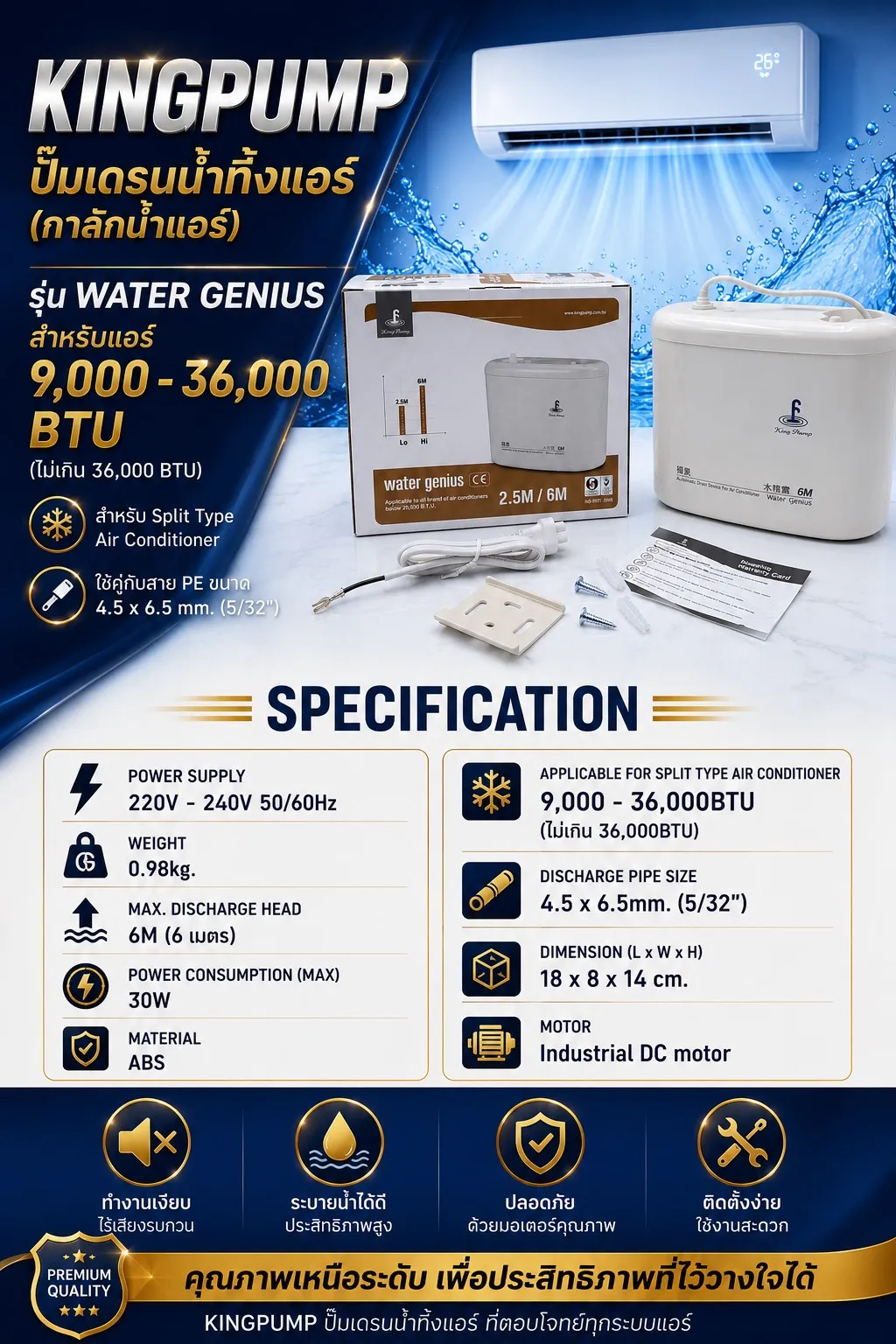

Specifications

• Applicable to all brand of air conditioners below 36,000 B.T.U.
• Power Supply / Frequency : AC 220V~240V 50 / 60Hz
• Max. Discharge Head : 6M
• Power Consumption (Max.) : 30W
• Ambient Temperature Range : 0°~50°c Max
• Dimensions / Weight : (L) 18 X (W) 8 X (H) 14 cm / 0.8 kg
• Material : ABS
• Discharge Pipe Size : ø 4.3 X ø 6.5 mm (5/32”)

Water Head (M) / Drainage (L / min)
