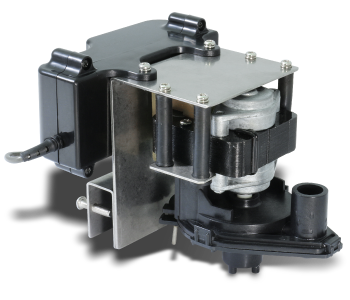

MOUNTED TYPE

All kinds of water plate type air conditioner and direct-expansion
fan-coil air conditioner dedicated Pumps.

Auto-detection high-low water level, auto-start motor, no size or environment of water plate restrictions.

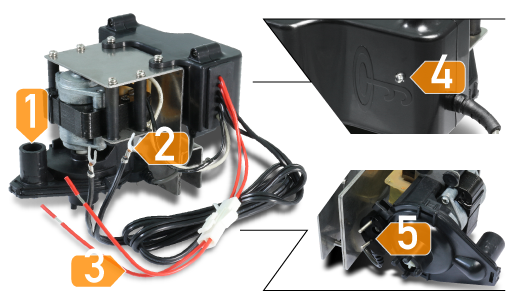

1. Water Full Alarm Switch

2. The overflowed Water Alarm Contact

3. IN: AC 220V

4. The overflowed Water Alarm Indicating LED light

5. Warning Probe

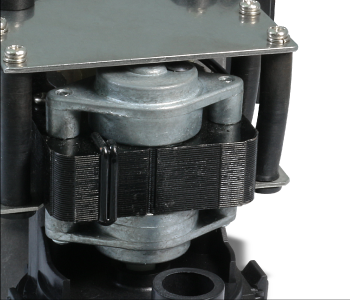

Applied long life high efficient Shaded-pole Motor

max. water head 1.2 M,
running quiet with high drainage capacity.

New Design Alarm System

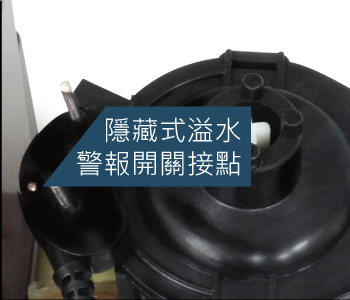

Full Tank Alarm Switch Design – the alarm switch is connected (Contact terminals current capacity AC250V3A) to mainframe, when the condensate water more than the overflowed water probe, warning red light will hit, automatically disconnected the mainframe, to prevent damage by the overflowed water. when machine malfunction , the condensate water lower than the overflowed water probe, warning red light and alarm switch will reset automatically.

Facilitates Design

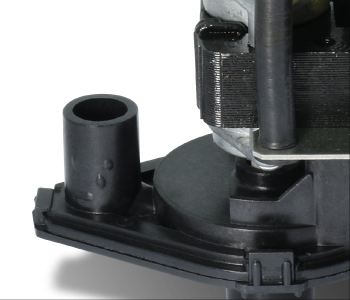

Ø16 Drainage Outlet design - low water inlet to
eliminate the remains of cooling condensed water.

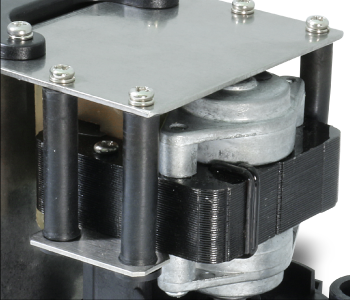

Motor Suspension Shock Pad design

to reduce motor running noise.

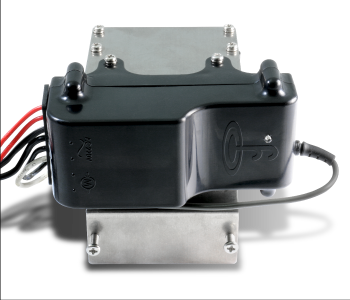

Support-Bracket designed

applicable to the water plate of all kinds of  Water-Chiller units and mounted-type air conditioners.

Specifications

• Applicable to air conditioners below 25,000 B.T.U and all kinds of water plate type air conditioner and direct-expansion fan-coil air conditioner.

• Power Supply / Frequency : AC 220V~240V 50 / 60Hz

• Max. Discharge Head : 1.2M

• Power Consumption (Max.) :15W

• Ambient Temperature Range : 0°~50°c Max

• Dimensions/ Weight : (L) 10.4 X (W) 14.2 X (H) 8.9 cm / 0.8 kg

• Discharge Pipe Size : ø 16 mm

• Motor :
  (a) Type – Shaded pole motor
  (b) Protector – High temperature protection fuse

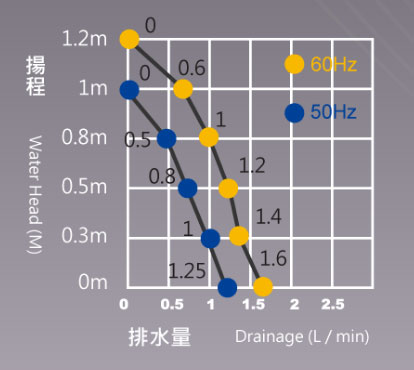

Water Head (M) / Drainage (L / min)
